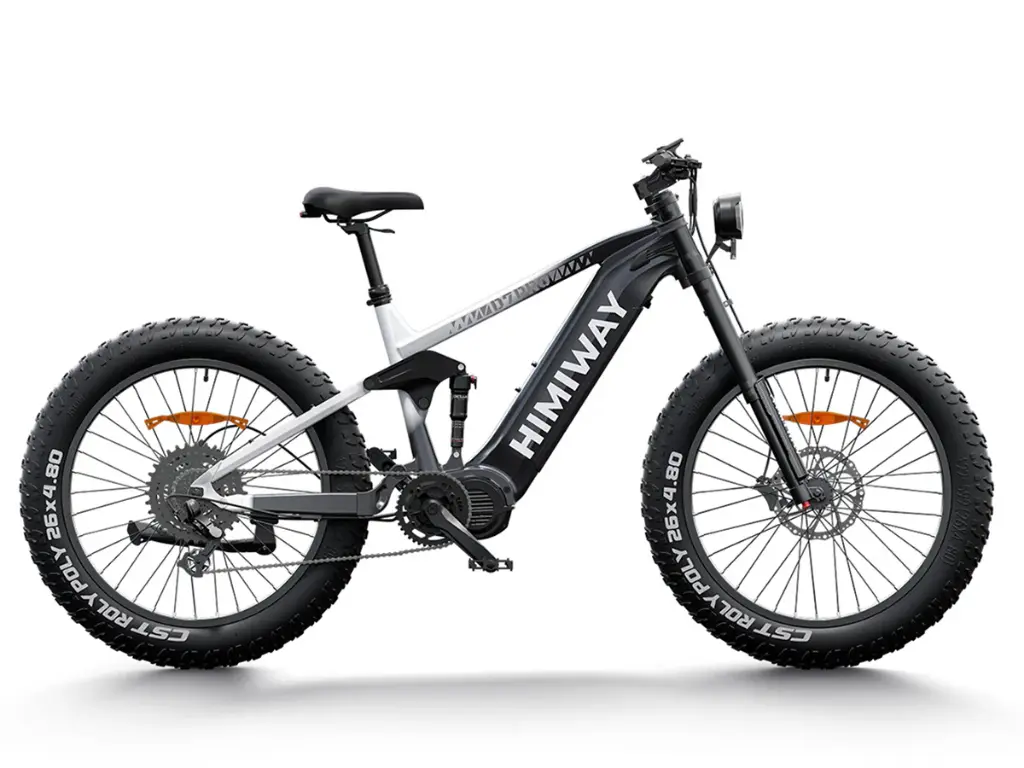

Himiway D7 Pro (Cobra Pro)

HIMIWAY D7 COBRA PRO

1000W Mid Drive Motor
48V 20Ah Lithium Battery
60-80 Mile Range*
1-10 Speeds up to 28 MPH
Hydraulic Disc Brakes
Backlit Smart LCD Display w/USB Charger
Aluminum Frame
26" x 4.8" Fat Tires
LED Headlight & Tail Light
Weight: 88.6lbs

2 Year All-Inclusive Warranty

*Range are estimates under optimal conditions provided by manufacturer - Shipping from manufacture within 14 business days*

Recommended Height:
D7 Pro -- 5'3" ~ 6'5"
Cobra Pro -- 5'4" ~ 6'4"
A – total length: 78.7
B – handlebar height: 42.7
C – handlebar length: 30.7
D – wheelbase: 52.6
E – wheel diameter: 28.7
F – minimum seat height: 20.9
G – maximum seat height: 30.4
H – chain stay length: 20
I – frame stack: 24.6
J – frame reach: 18.6
K – effective top tube length: 24.4
L – head tube length: 5.5
M – head angle: 64°
N – stand-over height: 30.7
Frame: 6061 Aluminum frame
Headset: Neco H383AE 28.6×44*56×30mm
Fork: KKE R150S coil spring fork compression/Rebound adjustable 220mm travel 15*150mm thru axle
Shock: ROCKSHOX deluxe select+ 190*45mm
Front wheel: M9CF-150 12G*150*15mm 26'' 36h
Rear wheel: M9ZR-197 12G*197*12mm 26'' 36h
Tires: CST roly poly 26*4.8
Battery: Samsung/LG 48V 20Ah
Motor: BaFang M620 1000W mid-drive motor
Display: BaFang DP C18 LCD display
Throttle: Thumb throttle
Sensors: Torque sensor丨shifting sensor丨speed sensor丨brake sensor
Crankset: Crank arm: M620 (Fat) 170mm | Chain ring: 38T 104BCD narrow wide chainring
Cassette: Shimano cues CS-LG400-10 11-48T
Chain: KMC eglide 130L
Groupset: Shimano cues U6000 10 speed
Front brake: Tektro HD-E730 4-piston hydraulic brake
Rear brake: Tektro HD-E730 4-piston hydraulic brake
Rotors: F: TR203-17 R: TR180-17
Stem: 3D forged alloy Ext:50mm
Handlebar: Promax HB-3188DB -W780
Seatpost: Exa speed-up 30.9*500mm 150mm travel
Saddle: Selle royal vivo
Pedal: Wellgo B087B
Lights: 48V LED light
Kickstand: Heavy-duty aluminum kickstand
Range: 60-80 miles
Controller: 48V/30A
Charger: US standard 3.0 A smart charger
Rider height: 5′3″ ~ 6′5″
Weight: 88.6 lb. (with battery)
Max. payload capacity: 400 lb.
